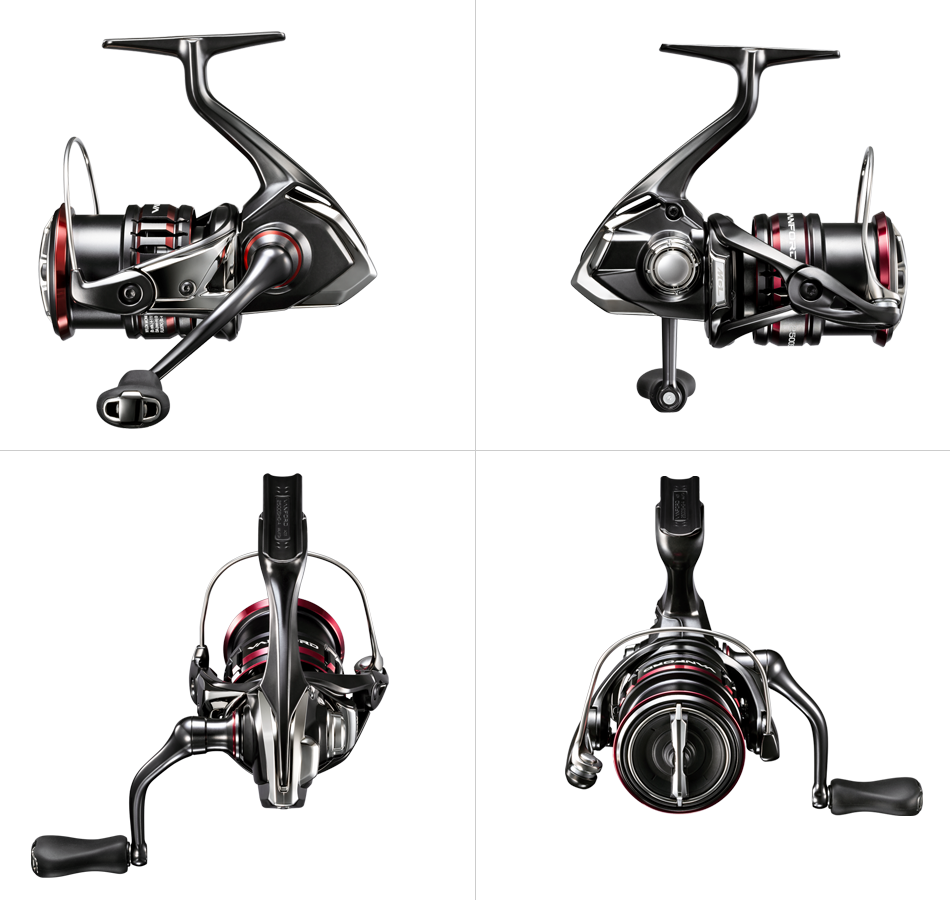

SUPER FAST |
| VANFORD |
Capture the field with "super sensitivity
and light weight"that you can manipulate at will
The Magnum Light Rotor and lightweight body provide
light unwinding and excellent operability. In addition,
it is equipped with Micro Module Gear II,
which provides a smooth and quiet gear feeling,
and a silent drive, enabling more delicate reeling.
Furthermore, the long-stroke performance
of the long stroke spool, X protection,
and the durability performance of the HAGANE gear
are not compromised. To technical and stoic anglers
who seek results.
* 3000MHG, 4000, 4000MHG, 4000XG, C5000XG
will be released in October,
and C2000S, C2000SHG, C2500SHG
will be released in November. |
| Technical characteristics |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
| * CI4 +: Body material & rotor material |
|
|
| Lineup |
 |
 |
 |
 |

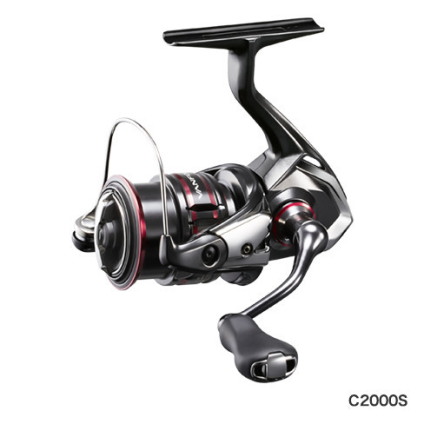

C2000S
C2000 series basic model
A standard model of light salt
and area trout with
a # 1000 size body and rotor
equipped with a # 2000
large diameter spool.
Nylon 4lb-100m line capacity
supports a wide range of
fishing. If you want to start
light salt and area trout,
start with this model.
[Reference target fish
/ fishing species] Light salt
in general, area trout, etc. |
C2000SHG
Optimal model for mountain
stream trout
High gear model of C2000S.
This model is the best
if you want to make the
lure act in the flow. With
a 45mm handle specification,
the winding weight due to
high gear is also reduced.
Nylon 4lb-100m line capacity
supports a wide range of
fishing up to light salt.
[Reference target fish
/ fishing species] Mountain
stream trout, light salt
in general, etc. |
C2500SHG
# 2500 size compact model
Equipped with a compact
spool and rotor on the
# 2500 series body.
Best match for light line
main bass fishing
and bream games.
[Reference target fish
/ fishing species]
Finesse bass,
black sea bream |
2500S
Standard model for bass
If you use it for bass fishing,
start with this model.
With normal gear ratio
specifications, it is ideal
for mainly developing slow
fishing. Fluoro 5lb-100m
line capacity can be used
up to 6lb.
[Reference target fish
/ fishing species]
Bass, Egging, etc. |
|
|
|
|
 |
 |
 |
 |
2500SHG
2500S high gear model
Can be used from buses
to mainstream trout.
# 2500 series high gear
standard. It is a model
that is excellent for
bass fishing that emphasizes
rework and lure operation
in the flow, and it is one
that can handle bass, trout,
egging, light salt, anything.
[Reference target fish
/ fishing species]
Bass, rainbow trout, etc. |
C3000
Versatile model that can be
used from freshwater to salt
Line capacity that can
be used from nylon
to PE. With 2 sets of drag,
drag power is sufficient.
A versatile model for
all types of fishing.
The normal gear ratio
specification is ideal
for slow fishing and fishing
that requires hoisting
torque.
[Reference target fish
/ fishing species] Versatile |
C3000SDH
Egging standard model
In response to Egginger's
enthusiastic demands,
this model is equipped
with a normal gear ratio
and double handle as
standard equipment.
[Reference target fish
/ fishing species] Egging |
C3000HG
Versatile high gear model
that can be used from
freshwater to salt
C3000 series standard model.
A versatile model with high
gear specifications that can
handle any situation.
If you are worried about
this size, I recommend
this model first.
[Reference target fish
/ fishing species] Versatile |
|
|
|
|
 |
 |
 |
 |
C3000XG
C3000 series fastest
winding model
Despite its compact size,
it is equipped with
a winding speed of 94 cm
per handle. This model
is ideal for fishing that
requires high-speed winding
and fishing that emphasizes
rework.
[Reference target fish
/ fishing species] Versatile |
3000MHG
Sea bass standard model
3000 model equipped with
# 2500 series compact spool
& rotor on # 4000 series body.
It fits anglers who demand
winding sensitivity by
thoroughly reducing the
weight of the tackle and
making the rotor compact
while seeking powerful
winding of # 4000.
The spool is compatible
with 2500 and C3000,
making it highly versatile.
[Reference target fish
/ fishing species] Sea bass,
cherry salmon, etc. |
4000
# 4000 size deep groove
standard model
Equipped with a deep
groove spool that
supports the powerful
hoisting force coming
from low gear and nylon,
it can handle unexpected
big things even though
it is # 4000. This model
is ideal for anglers who
place importance on
hoisting power and do
not want to move the
lure quickly.
[Reference target fish
/ fishing species]
Sea bass, cherry salmon,
light jigging, rock fish, etc. |
4000MHG
# 4000 size standard high
gear model
Just the right winding speed,
not too slow and not too fast.
A versatile model that can
be used for a wide range
of fishing species. Equipped
with M spool, ideal for
fishing using PE line No. 1
to No. 1.5. Recommended
for surf anglers who are
worried about the weight
of the XG.
[Reference target fish
/ fishing species]
Surf, sea bass, cherry salmon,
light jigging, rock fish, etc. |
|
|
|
|
 |
 |
|
|
4000XG
Surf fishing standard model
If you want to surf, this
model is the first. With the
overwhelming line slack
recovery ability that comes
from the winding speed of
1 m per rotation of the
handle, you can instantly
act the lure without time
loss even when the lure
is pushed greatly toward
you by a big wave or when
the line is swept by a
crosswind.
.. It is also ideal for blackfin
seabass.
[Reference target fish
/ fishing species]
Surf, blackfin seabass,
light shore jigging,
light shore casting, etc. |
C5000XG
Models for light shore jigging
and light shore casting
Equipped with a round
handle knob, long handle,
and carbon cross drag washer,
the # 5000 is tough and
compact, targeting blue
objects. This model is for
operability and weight
reduction.
[Reference target fish
/ fishing species]
Light shore jigging,
light shore casting, etc. |
|
|
|
|
|
|
|
 |
 |
| Feature |
 |
 |
 |
 |
Magnum Light Rotor
A magnum light rotor that
uses a rotor structure that
is asymmetrical to the left
and right, and achieves
a different level of
rotational lightness in
search of improved
operability and sensitivity.
Furthermore, we have
succeeded in reducing
the rotational inertia
by reducing the weight
of the line roller, making
the bale titanium, and
optimally arranging the
rotor wall thickness. |
Micro Module Gear II
Light and smooth. Gem
gear feel.
Micro module gear II evolved
by the most advanced tooth
surface design and
manufacturing technology
unique to Shimano.
We reviewed the design
of each gear tooth and
each tooth surface to
pursue the ideal tooth shape.
We have also achieved
a reduction in noise and
an improvement in smooth
gear feeling. |
Silent drive
A tranquil sense of unity
with thorough attention
to detail.
The basic design of the
entire body and drive-related
parts have been reviewed
one by one, and minute
backlash, gaps, and shaking
between the parts have
been thoroughly eliminated.
There are various areas
to be improved, such as
drive gears, worm shafts,
worm shaft pins, and worm
shaft gears. A new dimension
of smooth rotation
performance and quietness
have been achieved. |
Long stroke spool
To that point where the lure
does not reach.
Equipped with a long stroke
spool. Achieves a flight
distance increase of about
4% compared to the
conventional size with
# 2500 size. Vanford may
deliver it to that point
where the lure does not
always reach.
* Based on our flight
distance test inside
the dome |
|
|
|
|
AR-C spool
A spool that has been made lighter by Shimano's original processing technology in order to achieve both the two purposes
of "no trouble" and "extending the flight distance". The "line rectification effect" due to the special shape
of the spool ring adjusts the line emission to the best condition. |
|
|
|
|
 |
 |
 |
 |
X-Protect
Both smoothness
and waterproofness
cannot be surrendered.
By combining the
water-repellent effect
and the labyrinth structure,
waterproof performance
that can withstand water
pressure is realized without
impairing the lightness
of rotation. The mounting
location is the line roller
part and the body
(roller clutch) part.
In particular, the durability
of the line roller is more
than five times higher.
* For our conventional
products |
HAGANE gear
To a stronger gear system.
HAGANE gear that has
been installed in many
Shimano spinning reels.
Van Ford, which has
secured sufficient durability
by its own precision cold
forging technology,
is equipped with a newly
designed HAGANE gear
equivalent to the
high-end model.
As a result, we have
achieved one size higher
reel gear strength. |
Newly designed bale opening
and closing mechanism
Pursuing a smooth feeling
when opening. Wide opening
and closing angle and
improved feathering.
It also prevents unexpected
bale return.
* The photo is Vanquish |
New shape line clip
Uses a new shape clip
that is easy to remove
and has improved holding
power. We support a wide
range from Ester No. 0.2
to 40 pounds of fluorocarbon.
* The photo is STELLA |
|
|
|
|
|
| Specification table |
Item
name |
Gear
ratio |
Handle 1
rotation
(cm) |
Weight
(g) |
Max
drag
(kg) |
Line capacity
Nylon Line (lb-m)
Fluorocarbon Line(lb-m)
PE Line(PE-m) |
Bearing |
Catalog
Price |
Price
[JPY] |
Product
Code |
Parts
Scheme |
| BB |
roller |
| C2000S |
5.1 |
69 |
150 |
3.0 |
3lb-125m 4lb-100m
5lb-75m
3lb-110m 4lb-85m
5lb-65m
PE0.6-150m PE0.8-110m
PE1-80m |
7/1 |
30,000 |
JPY25,740 |
04201 |
 |
| C2000SHG |
6.1 |
82 |
150 |
3.0 |
3lb-125m 4lb-100m
5lb-75m
3lb-110m 4lb-85m
5lb-65m
PE0.6-150m PE0.8-110m
PE1-80m |
7/1 |
30,000 |
JPY25,740 |
04202 |
|
| C2500SHG |
6 |
81 |
160 |
3.0 |
5lb-110m 6lb-95m
8lb-70m
4lb-130m 5lb-100m
6lb-80m
PE0.6-200m PE0.8-150m
PE1-120m |
7/1 |
30,500 |
JPY26,169 |
04203 |
|
| 2500S |
5.3 |
78 |
175 |
4.0 |
5lb-110m 6lb-95m
8lb-70m
4lb-130m 5lb-100m
6lb-80m
PE0.6-200m PE0.8-150m
PE1-120m |
7/1 |
31,000 |
JPY26,598 |
04204 |
|
| 2500SHG |
6 |
89 |
175 |
4.0 |
5lb-110m 6lb-95m
8lb-70m
4lb-130m 5lb-100m
6lb-80m
PE0.6-200m PE0.8-150m
PE1-120m |
7/1 |
31,000 |
JPY26,598 |
04205 |
|
| C3000 |
5.3 |
78 |
180 |
9.0 |
10lb-180m 12lb-150m
16lb-100m
10lb-160m 12lb-130m
16lb-100m
PE1-400m PE1.5-270m
PE2-200m |
7/1 |
31,000 |
JPY26,598 |
04206 |
|
| C3000SDH |
5.3 |
78 |
180 |
9.0 |
5lb-110m 6lb-95m
8lb-70m
4lb-130m 5lb-100m
6lb-80m
PE0.6-200m PE0.8-150m
PE1-120m |
9/1 |
33,000 |
JPY28,314 |
04207 |
|
| C3000HG |
6 |
89 |
180 |
9.0 |
10lb-180m 12lb-150m
16lb-100m
10lb-160m 12lb-130m
16lb-100m
PE1-400m PE1.5-270m
PE2-200m |
7/1 |
31,000 |
JPY26,598 |
04208 |
|
| C3000XG |
6.4 |
94 |
180 |
9.0 |
10lb-180m 12lb-150m
16lb-100m
10lb-160m 12lb-130m
16lb-100m
PE1-400m PE1.5-270m
PE2-200m |
7/1 |
31,000 |
JPY26,598 |
04209 |
|
| 3000MHG |
5.8 |
86 |
200 |
9.0 |
8lb-130m 10lb-110m
12lb-85m
8lb-110m 10lb-90m
12lb-80m
PE1-190m PE1.2-150m
PE1.5-120m |
7/1 |
32,000 |
JPY27,456 |
04210 |
|
| 4000 |
5.3 |
87 |
215 |
11.0 |
14lb-170m 16lb-150m
20lb-125m
12lb-190m 16lb-145m
20lb-115m
PE1-490m PE1.5-320m
PE2-240m |
7/1 |
33,000 |
JPY28,314 |
04211 |
|
| 4000MHG |
5.8 |
95 |
220 |
11.0 |
10lb-160m 12lb-120m
16lb-90m
12lb-110m 16lb-90m
20lb-65m
PE1.2-250m PE1.5-200m
PE2-150m |
7/1 |
33,000 |
JPY28,314 |
04212 |
|
| 4000XG |
6.2 |
101 |
215 |
11.0 |
14lb-170m 16lb-150m
20lb-125m
12lb-190m 16lb-145m
20lb-115m
PE1-490m PE1.5-320m
PE2-240m |
7/1 |
33,000 |
JPY28,314 |
04213 |
|
| C5000XG |
6.2 |
101 |
220 |
11.0 |
16lb-190m 20lb-150m
22lb-125m
16lb-170m 20lb-135m
22lb-115m
PE1.5-400m PE2-300m
PE3-200m |
7/1 |
34,000 |
JPY29,172 |
04214 |
|
* XG = extra high gear specification, HG = high gear specification, S = shallow pool specification, M = medium deep spool
specification, DH = double handle specification, C = compact body.
* There is no stopper switching mechanism. |
|
|
|
